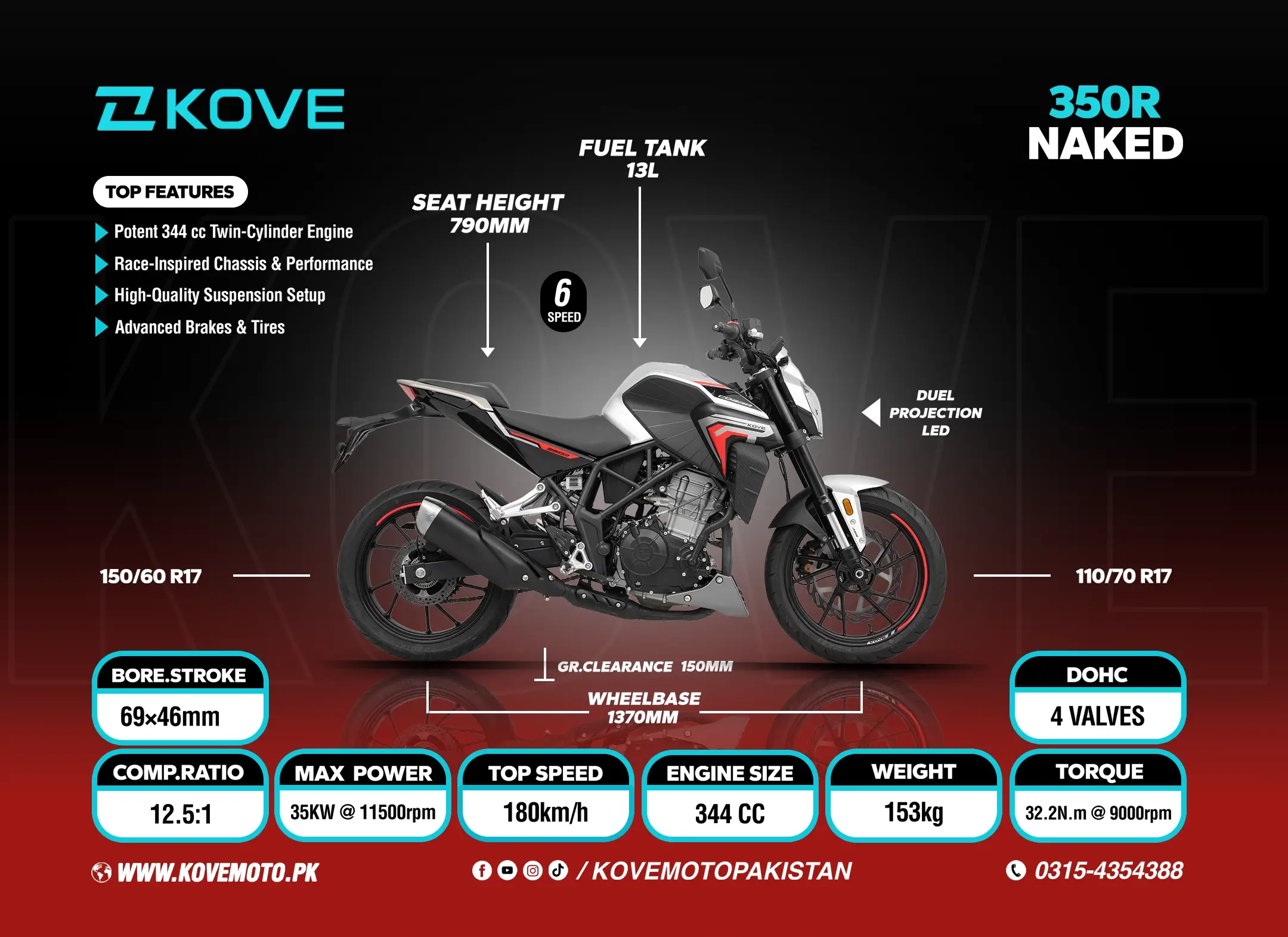

| Length X Width X Height | 1980×835×1075mm |
|---|---|
| Wheelbase | 1370mm |
| Seat height | 790mm |
| Tank capacity | 13L |
| Curb weight | 153kg |
| Ground clearance | 150mm |
| Engine type | Liquid cooled, inline dual cylinder, DOHC, 4 stroke, 8 valves |
|---|---|
| Displacement | 344cc |
| Bore x Stroke | 69×46mm |
| Max. power | 35KW @ 11500rpm |
| Max. torque | 32.2N.m @ 9000rpm |
| Compression Ratio | 12.5:1 |
| Max. speed | 180km/h |
| Frame Type | Diamond shape, dual-wing beam, integrated |
|---|---|
| Front Suspension | Unadjustable, Yu An |
| Rear Suspension | Unadjustable, Yu An |
| Front brake | 320mm single disc, 2-piston floating calliper/ABS |
| Rear brake | 220mm single disc, 1-piston floating calliper/ABS |
| Front tire | 110/70 R17 |
| Rear tire | 150/60 R17 |
| Steering Angle | 40° |
| Rake Angle | 24.5° |
| Instrumentation | TFT |
